1.Application:

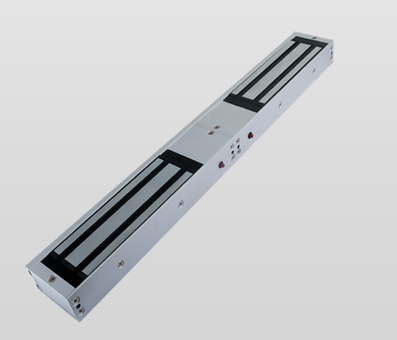

This model double door magnetic locks are compatible with access control, door phone, remote control system. Door and lock status outputs included for remote monitoring and system application needs. For bigger and heavier metal doors, wooden doors, fireproof doors, glass door. Hanging installation/surface mounted.

2.Feature:
Dual voltage selectable (12VDC or 24VDC)
Door status, lock status monitoring output
Low current consumption
Reliable holding force
Green/Red Led indication for lock status
Voltage and current Spike protection PCB
High strength material, anodized aluminum housing
Anti-residual magnetism kick-off button

3.Specification:
Holding force: 500kg / 1200lbs X 2
Lock: 532 L X 73 H X 42 D mm
Armature: 185 L X 61 H X 16 D mm
Voltage input: 12VDC / 24VDC selectable
Current draw: 12V / 500mA; 24V/250mA
