Digital Rack Lock

Name:
Fingerprint Locker Lock With Unlock Password LSLE1011F
Model:LSLE1011F
Function:
(1).Unlock By Fingerprint;

(2).With 32pcs Fingerprint Capacity;

(3).Unlock By Password;

(4).With LED Indicator For Operation Status;

(5).Low-Voltage Alarm When Voltage Lower Than 4.4V;

(6).Easy User Enroll By No.1 Key;

(7).Easy User Delete By No.2 Key;

(8).Easy Password Enroll By No.3 Key;

(9).Easy 8-Digit Password Combination by No.1 Key + No.2 Key,such as 1212 1212/1111 2222/2121 2121 for unlocking password.

Description
Configuration
Paking List
Download
Video

1.Feature:

(1).Unlock By Fingerprint;

(2).With 32pcs Fingerprint Capacity;

(3).Unlock By Password;

(4).With LED Indicator For Operation Status;

(5).Low-Voltage Alarm When Voltage Lower Than 4.4V;

(6).Easy User Enroll By No.1 Key;

(7).Easy User Delete By No.2 Key;

(8).Easy Password Enroll By No.3 Key;

(9).Easy 8-Digit Password Combination by No.1 Key + No.2 Key,

such as 1212 1212/1111 2222/2121 2121 for unlocking password.

2.Parameter:

Item	Parameter	Remark
Power	6V	4pcs AA battery or outside power bank offering.
Low-voltage alarm	4.6V
Unlocking Time	3000Times	By each 4pcs AA battery
Work Current	200mA
Work Temperature	-10--55℃
Work Humidity	<85%
Storage Temperature	-40--80℃
Fingerprint Enroll	<2S
Scanning Speed	<1S
FRR	<3%
FAR	<0.001%
Fingerprint Capacity	32PCS

3.Programming:

First:connect the cable(patch cord) from back panel to the front panel,installed 4pcs AA battery.

(1).Programme(Register) First Fingerprint:

Read any fingerprint on the reader, when lock opening, press "No.1 Key",the reader will light,

then read your any fingerprint for registration.When light blue,means registration is successful,

if red light,means failure.

(2).Programme(Register) Other Fingerprint:

Read the first registered fingerprint to open the lock,when lock opening,press "No.1 Key",the reader will light,then read your other fingerprint for registration.When light blue,means registration is successful,if red light,means failure.

(3).Delete Fingerprints:

Read any your registered fingerprint to open the lock when lock opening,press "No.2 Key" for about 4 seconds until buzzer "di----" sound,which means lock is programmed into default settings.In other word,all the fingerprint has been deleted.

(4).Programme Unlocking Password:

Read any your registered fingerprint to open the lock,when lock opening,press"No.3 Key",the blue light will flash,that means:you can now programme unlocking password,the password must be 8-digit by any combination of "No.1 Key + “No. 2 Key",such as 1111 2222 or 2121 2121.

When programme the unlocking password,you have to input the password 2 times for final confirmation.

The initial password is:12121212.

(5).Unlock By Fingerprint:

Read any registered fingerprint directly on the reader,then lock can be open.Before read the fingerprint,you can press "No.3 Key" for start unlocking status.Or without press "No.3 Key",

you can also read your fingerprint directly for unlocking.

(6).Unlock By Password:

Input the unlocking password directly for door lock release.

4.Fingerprint Reading On Sensor:

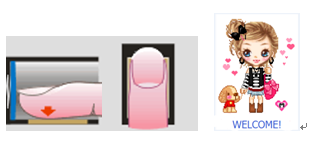

(1).Correct Reading:
