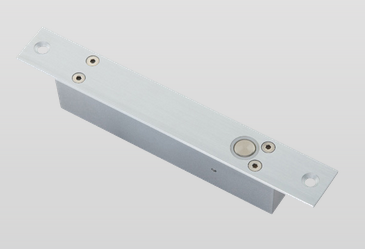

1.Application:

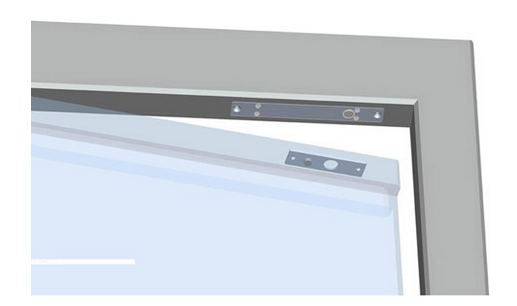

This model Electric drop bolt is compatible with access control, door phone, remote control system. Time delay mould and can set up 0~6 seconds. Door and Lock status outputs included for remote monitoring and system application needs. Suitable for fully frameless glass doors. Suitable for all types of wooden doors, glass doors, metal doors, including framed doors, hollow framed doors.

2.Feature:
Fail-safe operation (unlocks if power is lost)
Lock statue signal output contact
Door statue signal output contact
Time Delay: 0~6 sec
Low temperature, safe
Low power consumption
Reliable locking mechanism (Up to 500000 operations)
Durable and silence operation
Cosmetic anodized finish aluminum surface
Reverse current protection PCB
Full range of optional brackets

3.Specification:
Lock size: 200L X 28W X 3H mm
Bolt: Dia. 12.5mm, Stainless steel,15mm pop out
Voltage input: 12VDC
Standby current: 130mA
Start current: 700 mA
Induction Distance: 8mm
Operating temp: -10~+55℃
Operating Humidity: 0~90% (non-condensing)
