Fail secure, pulse to open
Elegant surface finish: Black painted
Single connecte cylinder
Solid brass hook latch
Solid brass cylinder and deadbolt
Reliable locking mechanism (Up to 1000000 operations)
High security, low noise
Certificate: CE
1.Application:

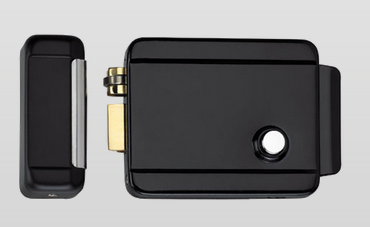

This model is single connected cyinder electric rim lock which is compatible with all sorts of access controller system and building intercom system. Suitable for wooden door and metal door, in-swing doors or out-swing doors.
2.Feature:
Fail secure, pulse to open
Elegant surface finish: Black painted
Single connecte cylinder
Solid brass hook latch
Solid brass cylinder and deadbolt
Reliable locking mechanism (Up to 1000000 operations)
High security, low noise
Certificate: CE
3.Specification:
Voltage: 12VDC (Pulse)
Operation current: 3A
Size: 148 x 107 x 107mm
Backset: 70mm
Keys: 5pcs
The thickness of lock body and strike: 2.0mm
Working temperature: -40 ° C~ +50 ° C
